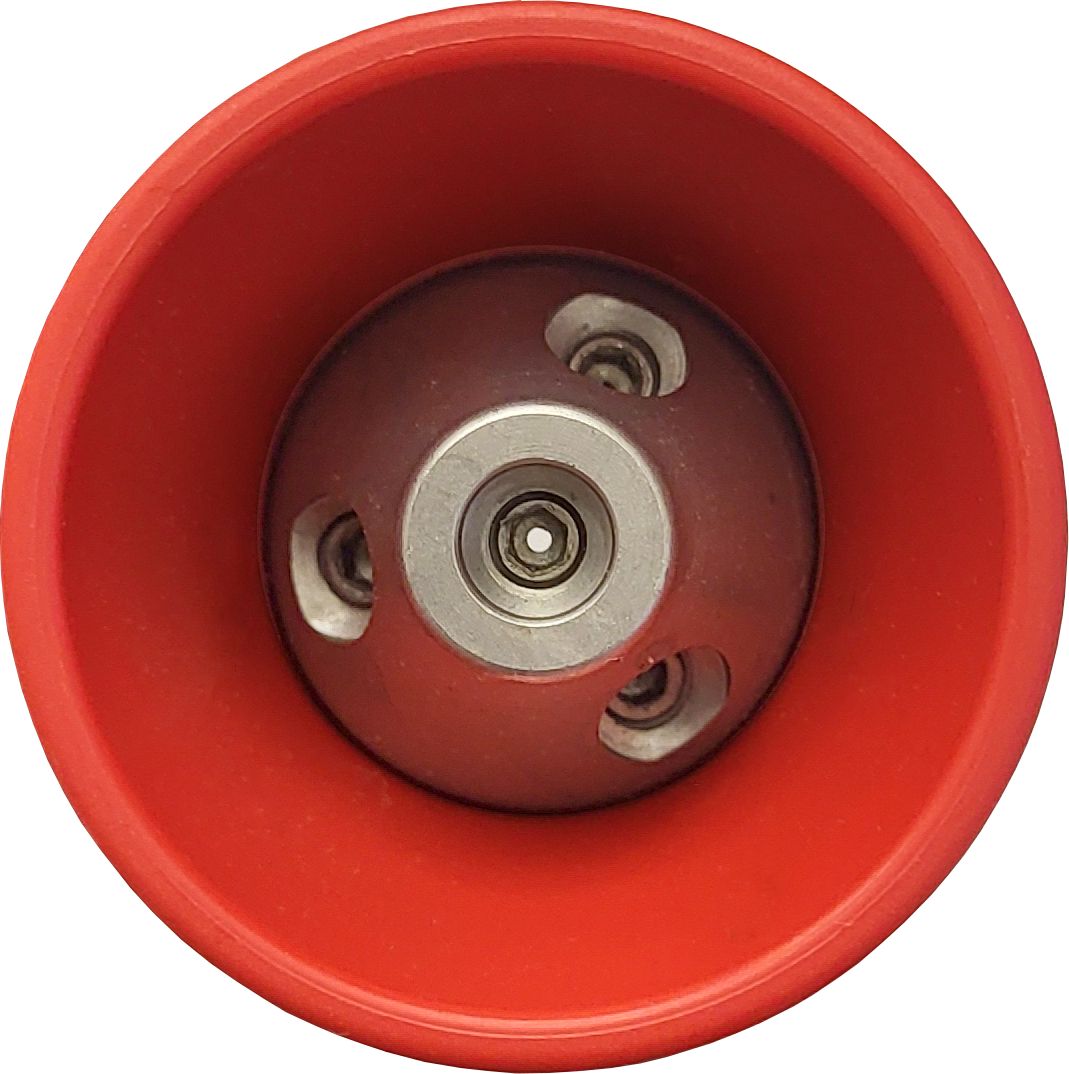

The Red Series Hydro X Static Nozzle contains four stationary forward-facing nozzle jets. One jet at 0 degrees pointing straight forward and three triangular-positioned jets at 15relative to the center jet. This allows for effective soil erosion in areas with access issues.
The nozzle body is manufactured from hardened stainless steel and has a durable poly-molded cover to protect the nozzle jets from dirt and mud.
SPECIFICATIONS- 1/2” FNPT Connection
- Rated at 4000 PSI
- Temp Rated at 212F
- Weight: 0.25 lbs.
Call today for more details at (877) 389-9999
UEMSI P/N | Nozzle Size | GPM @ 725 PSI | GPM @ 1450 PSI | GPM @2175 PSI | GPM @ 2900 PSI | GPM @ 3625 PSI |
20045 | 4.5 | 1.95 | 2.7 | 3.3 | 3.9 | 4.3 |
20060 | 6.0 | 2.6 | 3.6 | 4.5 | 5.1 | 5.8 |
20080 | 8.0 | 3.4 | 4.8 | 5.9 | 6.9 | 7.7 |
20100 | 10.0 | 4.3 | 6.0 | 7.4 | 8.6 | 9.6 |
20120 | 12.0 | 5.1 | 7.2 | 8.9 | 10.3 | 11.6 |
